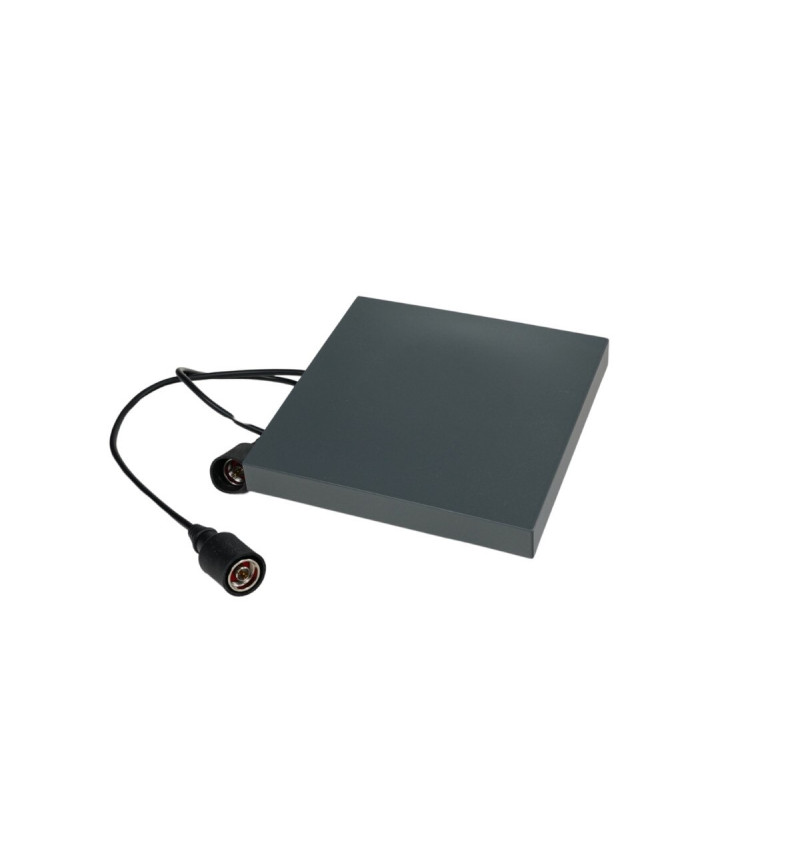

Overview of Cisco Meraki Dual-Band Patch Antenna (MA-ANT-25) | New

The Cisco Meraki MA-ANT-25 is a high-performance, dual-band, sector patch antenna designed for use with Meraki outdoor access points featuring N-type connectors. It supports both 2.4GHz and 5GHz frequency bands, providing focused, directional wireless coverage. This makes it ideal for installations that require targeted coverage in indoor or outdoor environments

Cisco Meraki Dual-Band Patch Antenna (MA-ANT-25) Features:

• Dual-Band Operation: Supports both 2.4–2.5GHz and 5.15–5.875GHz frequency ranges.
• High Gain: Offers 8dBi gain on the 2.4GHz band and 6.5dBi gain on the 5GHz band for stronger, more focused signal transmission.
• MIMO Support: Designed for MIMO applications, improving data rates and wireless performance.
• Directional (Sector) Antenna: Provides sector coverage with a horizontal beamwidth of 60° (2.4GHz)/75° (5GHz) and vertical beamwidths of 70° (2.4GHz)/84° (5GHz).
• Mounting Flexibility: Includes hardware and cables for mounting on walls or poles.
• Weather Resistance: Built with UV-resistant plastic and rated to operate from -40°C to 70°C (-40°F to 158°F), suitable for outdoor deployments.
• Easy Integration: Comes with 2x N-type connectors and 12-inch cables for simple attachment to supported Meraki APs.
• Physical Dimensions: 7.1 x 7.1 x 1.6 in (180 x 180 x 1.8 mm), weighing 1.1 lbs (512g).

Compatible Meraki Access Points

• MR72
• MR74
• MR76
• MR84
• MR86

Best Uses for Cisco Meraki Dual-Band Patch Antenna (MA-ANT-25):

• Focused Wireless Coverage: Ideal for targeted coverage in specific areas such as walkways, corridors, or event venues where signal needs directionality rather than omnidirectional coverage.
• Point-to-Point Wireless Links: Frequently used to create medium-distance wireless backhaul or bridge links between two network points.
• Challenging Environments: Provides enhanced range and reliability in both indoor and outdoor settings, including industrial or campus installations.
• Range Extension: Can extend the effective range of Meraki access points up to 2.5x in the antenna’s preferred direction due to its focused beam pattern

This antenna is an excellent choice for organizations that need focused, reliable wireless coverage or require establishing dedicated wireless links in both indoor and outdoor settings.

Specifications for Cisco Meraki Dual-Band Patch Antenna (MA-ANT-25) | New
