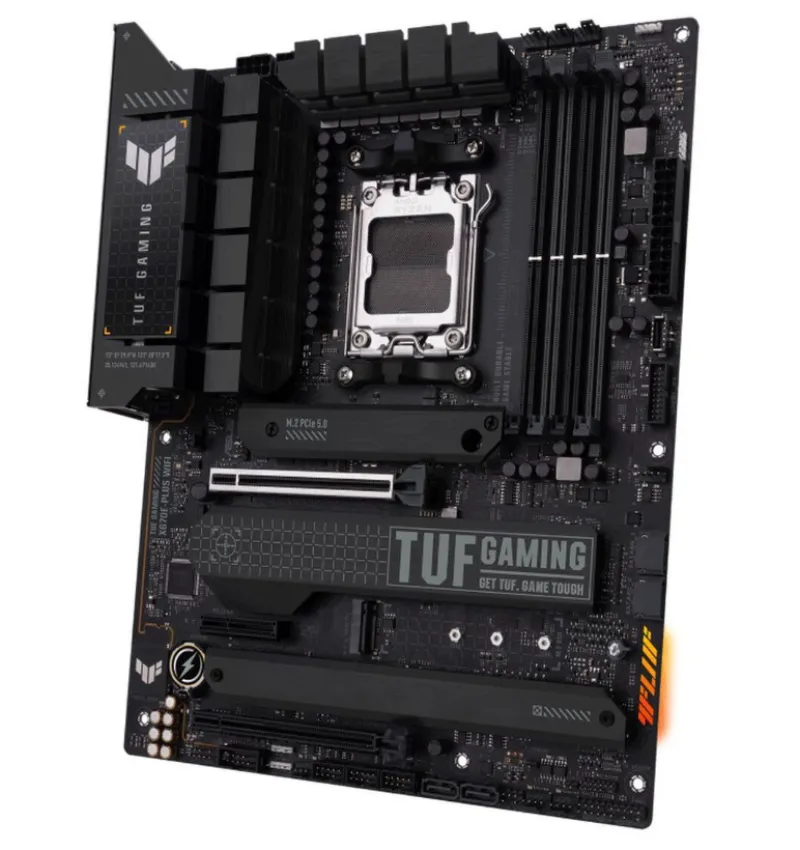

ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0) | New
ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0) | New
Condition: New
Availability: In Stock
Availability: In Stock
| Delivery Option | |
| Anywhere | |
|
Express Delivery in USA Get within 1 to 3 days |
|
|
Free Ground in USA 2 to 6 days (Varies by location) |
|
|
International Delivery Must have a UPS FedEx or DHL account to ship on or a USA based Freight Forwarder to Ship To. |
|
| Visa, Mastercard, AMEX,PayPal,Wire are accepted | |
| PO accepted from Qualified Institutions | |
| Only Wire Transfer accepted For International Customers |
|
| Return & Warranty | |
| 90 days return | |
| Warranty vary by product Please see our policies page. |
|
Overview of ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0) | New
The ASUS TUF Gaming X670E-PLUS WiFi motherboard is a robust and feature-rich ATX motherboard designed for gamers and enthusiasts. Built around the AMD X670 chipset and AM5 socket, it supports the latest AMD Ryzen 7000, 8000, and 9000 series processors, making it ideal for high-performance gaming and productivity tasks.
ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0) Features:
- Chipset & CPU Support: AMD X670 chipset with AM5 socket supports Ryzen 7000, 8000, and 9000 series processors.
- Memory: Supports up to 128GB of DDR5 memory with speeds up to DDR5-6400 (OC).
- PCIe Slots: Includes one PCIe 5.0 x16 slot for GPUs, ensuring compatibility with next-gen graphics cards.
- Four M.2 slots (including one PCIe 5.0 x4) for NVMe SSDs, enabling fast storage options.
- Wi-Fi 6E: Offers faster wireless connectivity with MU-MIMO support.
- Ethernet: Equipped with Realtek 2.5 Gb Ethernet for lag-free gaming.
- Realtek ALC S1220A HD Audio codec provides high-quality sound with positional cues for FPS gaming.
- Engineered with military-grade components for durability.
- Passive heatsinks and heatsink covers on NVMe slots enhance cooling performance.
- Multiple USB ports, including USB-C (USB 3.2 Gen 2x2), USB-A (USB 3.1/3.2 Gen 2), and USB-A (USB 3.0/3.1/3.2 Gen 1).
- HDMI and DisplayPort outputs for integrated graphics when using processors with onboard graphics capabilities.
- RGB lighting that syncs with other ASUS Aura-compatible devices.
- Two-way AI noise cancellation enhances microphone audio quality during calls or gaming sessions.
- BIOS Flashback button allows easy firmware updates without installing a CPU or memory
Best Uses for ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0):
- Gaming: The motherboard is optimized for immersive gaming with ultrafast networking (Wi-Fi 6E and 2.5 Gb Ethernet), pristine audio, and support for high-speed DDR5 memory and PCIe 5.0 graphics cards.
- Content Creation: Its support for PCIe 5.0 storage and high-speed memory makes it suitable for demanding workloads like video editing, rendering, and multitasking.
- System Builders: With its durable military-grade components and comprehensive cooling system, it is ideal for building reliable systems that can handle extended use
Users appreciate its overclocking capabilities, ease of installation, and reliable performance. However, some have noted that the Wi-Fi chipset could be better optimized for higher speeds compared to competitors like Intel AX210 cards
The ASUS TUF Gaming X670E-PLUS WiFi motherboard is a versatile choice for gamers, content creators, and system builders seeking durability, high performance, and modern features like DDR5 memory support and PCIe 5.0 compatibility. It balances reliability with cutting-edge technology to deliver a solid foundation for AM5 builds
Specifications for ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0) | New
| Manufacturer | ASUS |
| Manufacturer Part Number | 90MB1BK0-M0AAY0 |
| Product Name | ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0) |
| Product Type | Motherboard |
| CPU Compatibility | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | Yes |
| Graphics | 1 x DisplayPort, 1 x HDMI® port |
| Storage Total | supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band*, Bluetooth v5.2 |
| Rear USB (Total 10 ports) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®), 5 x USB 3.2 Gen 1 ports (5 x Type-A) |
| Front USB (Total 9 ports) | 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* |
| Audio Features | Audio shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®), 5 x USB 3.2 Gen 1 ports (5 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button, |
| Fan and Cooling related | 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x W_PUMP+ header, |
| Power related | 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connectors |
| Storage | 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports |
| USB | 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Miscellaneous | 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt™ header |
| TUF PROTECTION | DIGI+ VRM (- Digital power design with DrMOS), ESD Guards, LANGuard, Overvoltage Protection, Safeslot Core+, Stainless-Steel Back I/O |
| ASUS Q-Design | M.2 Q-Latch, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot |
| ASUS Thermal Solution | M.2 heatsink, VRM heatsink design |
| ASUS EZ DIY | BIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS header, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM |
| AURA Sync | AURA RGB header, Addressable Gen 2 headers |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| ATX Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Assembled Product Dimensions | 13.30 x 12.00 x 2.68 Inches |
| Package Weight | 3.92 lb. |
| Box Dimensions | 13.3 x 11 x 2.8" |
