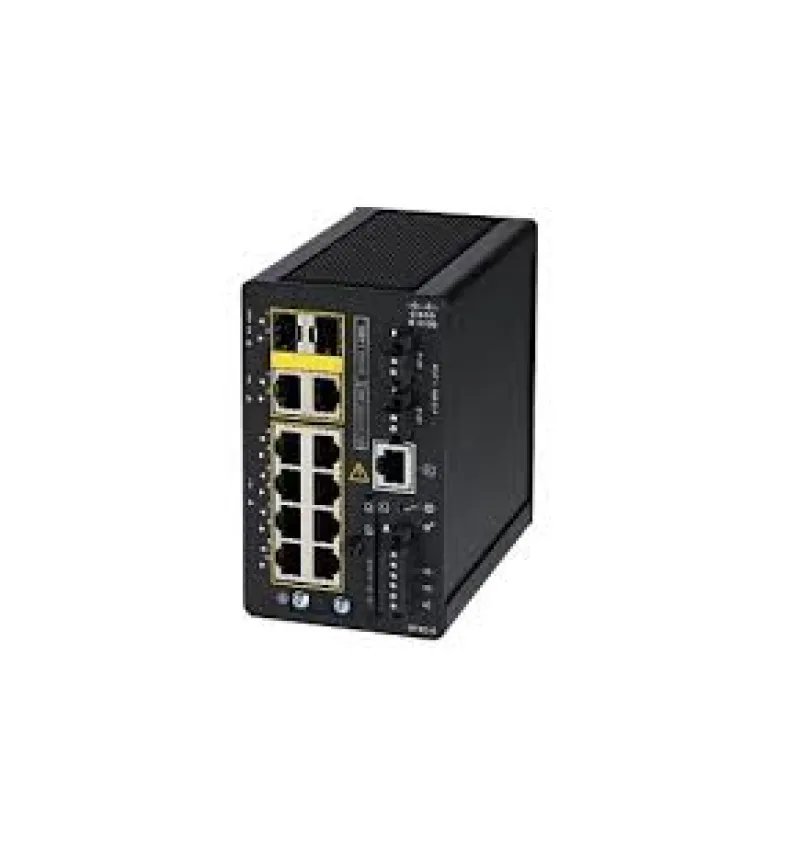

Cisco Systems IE3105 with 18GE Copper, 2GE Combo, Advanced Feat, Fixed System, Net Essent
Cisco Systems IE3105 with 18GE Copper, 2GE Combo, Advanced Feat, Fixed System, Net Essent
Condition: New
Availability: In Stock
Availability: In Stock
| Delivery Option | |
| Anywhere | |
|
Express Delivery in USA Get within 1 to 3 days |
|
|
Free Ground in USA 2 to 6 days (Varies by location) |
|
|
International Delivery Must have a UPS FedEx or DHL account to ship on or a USA based Freight Forwarder to Ship To. |
|
| Visa, Mastercard, AMEX,PayPal,Wire are accepted | |
| PO accepted from Qualified Institutions | |
| Only Wire Transfer accepted For International Customers |
|
| Return & Warranty | |
| 90 days return | |
| Warranty vary by product Please see our policies page. |
|
Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.
The IE3100 Rugged Series switches offer:
- Models offering 6, 10, 12, or 20 Gigabit Ethernet ports with up to 4 Gigabit SFP uplink ports or 2 Gigabit Combo uplink ports
- Robust resiliency enabled by features such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and dual-input DC power supplies
- Simplified software management with universal images
- Support for industrial automation protocols EtherNet/IP (CIP), Modbus and PROFINET
- Support for Layer-2 Network Address Translation
>
| Product Name | IE3105 with 18GE Copper, 2GE Combo, Advanced Feat, Fixed System, Net Essent |
| Manufacturer Part Number | IE-3105-18T2C-E |
| Product Type | Ethernet Switch |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | Catalyst IE3100 Rugged |
| Media Type Supported | Twisted Pair
Optical Fiber |
| Total Number of Network Ports | 20 |
| Total Number of Expansion Slots | 2.0 |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) |
| Expansion Slot Type | Uplink Module |
| Form Factor | DIN Rail Mountable |
| Power Consumption | 36.70 W |
| Power Source | DC |
| Layer Supported | 3 |
| Environmentally Friendly | Yes |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Port / Expansion Slot Details | 20 x Gigabit Ethernet Network
2 x Gigabit Ethernet Combo Uplink |
| Networking Standards | IEEE 802.1D
IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.1ab IEEE 802.3ad IEEE 802.3ah IEEE 802.3u IEEE 802.3ab IEEE 802.3z |
| Product Color | Black |
| Height | 5" |
| Width | 4.3" |
| Depth | 5.1" |
| Product Series | IE3100 Rugged |
| Network Technology | 10/100/1000Base-T
1000Base-X |
| Product Line | Catalyst |
| Input Voltage | 12 V
48 V 9.6 V 60 V |
| Limited Warranty | 5 Year |
| Color Family | Black |
| MTBF | 642050 Hour |
| Manufacturer | Cisco Systems |
| Availability | In Stock |
